ZLN 103F Sandproof Waterproof Cable Connector Replace Fischers DBP 103 A058-130

XI'AN SPRING TECHNOLOGY CO,.LTD
Contact Now

ZLN 103F Sandproof Waterproof Cable Connector Replace Fischers DBP 103 A058-130

  • 1
  • 2

Brand Name : SPRING

Model Number : ZLN 103F

Certification : CE,CB

Place of Origin : CHINA

MOQ : 5

Price : Negotiable

Payment Terms : Western Union, T/T, MoneyGram,

Supply Ability : 100000pcs/month

Delivery Time : 5 work day

Packaging Details : Bag

Shell material : Brass

Pin material : Brass

Termination : Solder, crimping,printed board

Protection level : IP68

Contact Now

ZLN 103F waterproof connectors | Replace fischers DBP 103 A058-130

The number of contacts in ZLN 103F socket is 2/3/4/5/6/7/8/10/12/14/16.it replace Fischers DBP 103 A051/A052/A053/A054/A056/A057/058/A060/A062/A064/A066-130.Fast insertion,high density, waterproof,small size, blind insertion and high life.large stock,short lead times,better quality at a reasonable price,

1, Brief introduction:

Safe split-pull self-locking system,self-locking function after plugging,Ideal for military, avionics, automotive and many other connector applications that demand rugged performance,


2, Main features:

  • IP68 protection level, waterproof and sandproof;
  • 360 degree shielding provides full EMC protection.
  • micro-circular high-density connector
  • split-type push-pull structure
  • waterproof, small size, blind insertion and high life
  • suitable for high-density installations

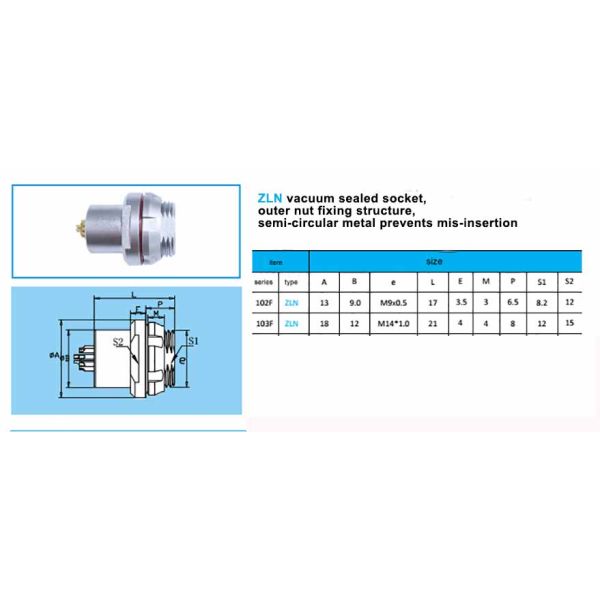

3, Construction and size:

ZLN 103F Sandproof Waterproof Cable Connector Replace Fischers DBP 103 A058-130

4, Technical data sheet:

Mechanical life >3000
Vibration frequency 10-20000Hz, acceleration 147m/s2, ≤1um instantaneous impact: acceleration 490m/s2, ≤1um instantaneous
Working temperature -55 ° C ~ + 145 ° C
Relative humidity up to 95° at 40°C
Protection level IP68
Connector type Socket, Female Pins
Number of positions 2~16 pin
Termination Solder
Fastening type Push-pull
Orientation semi-circular positioning
Shell material Brass
Shell finish Chrome
Shell color Silver
Contact material Brass
Contact finish-mating Gold
Contact color Gold
Insert material PPS

5, Why choose us

  1. Lower your cost, cheap cable assembly offer, at least save your 30%-50% cost (100% compatible and work well)
  2. large stock, short lead times, easy to buy.
  3. Our factory has 9 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
  4. Our company have passed ISO9001, and also got CE,CB,and SGS certification
  5. We can provide OEM/ODM service and cable assembly solution.
  6. better quality at a reasonable price

6, Choosing tips:

If you have purchased fischer connector or connector like this type and know the original model, please tell us. We will directly offer you our corresponding one.

If you don’t know much about the connector, please make choose according the following factors:

  1. the use of the environment, indoors or outdoors, waterproof or not;
  2. the panel hole size, to select the appropriate plug and socket of right dimension;
  3. the current-voltage and the realization of the function, to determine the cores;
  4. select the appropriate clamp diameter and sheath;
  5. according to the actual needs of different angles of the keys, to determine semi-circular positioning

7, Picture

ZLN 103F Sandproof Waterproof Cable Connector Replace Fischers DBP 103 A058-130
