Hermetic Waterproof Electrical Connectors Ip68 Power Connector Lightweight

Name: Hermetic Waterproof Electrical Connectors Ip68 Power Connector Lightweight
Brand: SPRING
Price: 1 USD

China Hermetic Waterproof Electrical Connectors Ip68 Power Connector Lightweight wholesale

Brand Name : SPRING

Model Number : ZLN.103F

Certification : CE,CB,ISO9001

Place of Origin : CHINA

MOQ : 5

Price : Negotiable

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 5 work day

Packaging Details : Bag

Shell material : Brass

Termination : Solder

Protection level : IP68/66

Shell finish : Chrome

Shell size : 103F

Insulator material : PPS

Contact Now

Fischer DBPC 103 Socket Equivalent | ZLN.103F Hermetic Sliver Connector

1. ZLN.103F hermetic connector with elbow contacts brief introduction:

ZLN.103F can compatible with Fischer DBPC 103 connector but cheaper connector of other companies of the same type making it. Highly reliable performance in tough environments, Rugged, lightweight and compact connectors, Easy to clean, maintain and store.

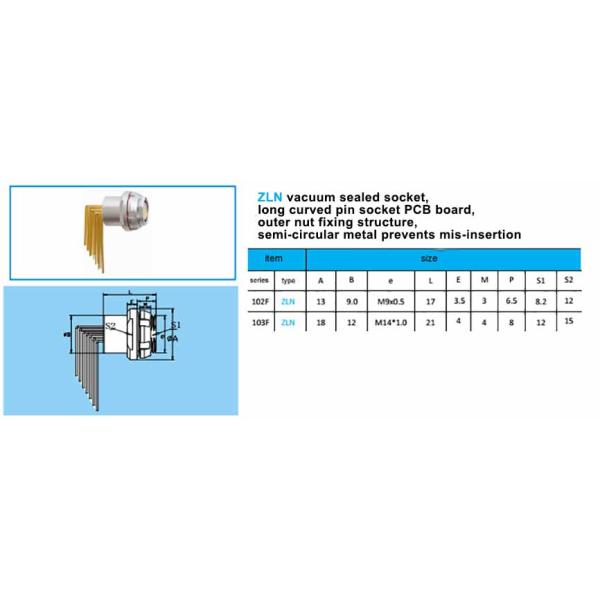

2, ZLN.103F Hermetic Socket, back panel mounting, with arc-shape metal guides, (Elbow (90°) print Contacts)

Hermetic Waterproof Electrical Connectors Ip68 Power Connector Lightweight

3, Cross reference

SPRING P/N	FISCHER P/N	Definition
ZLN.103F.302.CLLV	DBPC 103 A/Z 051-130	ZL Socket with key (N), Shell Size 103,multipole type with 2 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.303.CLLV	DBPC 103 A/Z 052-130	ZL Socket with key (N), Shell Size 103,multipole type with 3 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.304.CLLV	DBPC 103 A/Z 053-130	ZL Socket with key (N), Shell Size 103,multipole type with 4 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.305.CLLV	DBPC 103 A/Z 054-130	ZL Socket with key (N), Shell Size 103,multipole type with 5 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.306.CLLV	DBPC 103 A/Z 056-130	ZL Socket with key (N), Shell Size 103,multipole type with 6 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.307.CLLV	DBPC 103 A/Z 057-130	ZL Socket with key (N), Shell Size 103,multipole type with 7 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.308.CLLV	DBPC 103 A/Z 058-130	ZL Socket with key (N), Shell Size 103,multipole type with 8 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.310.CLLV		ZL Socket with key (N), Shell Size 103,multipole type with 10 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.312.CLLV	DBPC 103 A/Z 062-130	ZL Socket with key (N), Shell Size 103,multipole type with 12 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.314.CLLV		ZL Socket with key (N), Shell Size 103,multipole type with 14 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts
ZLN.103F.316.CLLV		ZL Socket with key (N), Shell Size 103,multipole type with 16 contacts, outer shell in natural chrome-plated brass, PPS insulator, female elbow print contacts

4. Fischer DBPC 103 Socket description:

Easy mating, can be blind-mated (guiding mechanism ensures precise alignment)
watertight connection (IP 68/IP 66),waterproof and sandproof;
Robust and shock resistant (designs ideal for equipment used in the field)
security of the Push-Pull self-latching system
360°screening for full EMC shielding.
high packing density for space savings
Increased equipment life span (guiding mechanism optimally protects the contacts)
multipole types 2 to 16 contacts

5, Keying Codes Options
All Multipole body styles are mechanically coded.
Code 1 is the standard, but other codes can be requested

Hermetic Waterproof Electrical Connectors Ip68 Power Connector Lightweight

6. Fischer DBPC 103 Socket technical specification:

Pulling and inserting times	> 3000 cycles
Humidity	Maximum humidity up to 95% at a temperature of 40°
Temperature	-55°~+145°
Vibration	frequency 10-20000HZ, acceleration 147m/s², ≤1um instantaneous break
Impact	acceleration 490m/s², ≤1um instantaneous break
Protection index (mated)	IP68
Connector type	Plug, Male Pins;
Number of positions	2-16 pin
Termination	print
Fastening type	Push-pull
Orientation	N (A, B)
Shell material	Brass
Shell finish	Chrome
Shell color	Silver/Black
Contact material	Brass
Contact finish-mating	Gold
Contact color	Gold
Insert material	polyphenylene sulfite ( PPS)
Cable opening	2.2mm~7.5mm

Request a quote, sample, and datasheet. Inquiry now !
